800W High Speed 36V DC Brush Motor Kit with Speed Controller & Throttle - for Electric Bikes, Scooters, Mini Bikes, ATVs & Go-Karts | Perfect for Commuting, Off-Road Adventures & DIY Electric Vehicle Projects
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:28 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:24746444
Product Description
Model MY1020Electric EVO scooter partsFits : trycicle , electric scooter , extreme scooter and similar bikes36V800W Brushed motor Unite Brand Motormotor sprocket 11 teethDiameter :10.5cmBracket foot width:12cmMotor length :13.5cmFit:T8F/25H ChainRating power :800W 36VRating speed rate/rpm : 2800rpmRating torque /N.m : 2.8 N.mEfficiency : ≥78Use : tricycle , bicycle , E-scooter, EVO scooter ,Extreme scooterSpeed Controller: Works on 36V, 800W scooters and electric bikesType: brush speed controllerVoltage: 36VWattage: 800WCasing material: aluminiumColour: silverDimensions: 105 x 69 x 32mmPlug :1.Red & Black (large cable) : Battery connections2.Yellow & Blue : Motor connections3.Red & Blue : Key Switch(power lock)(If there is no power door locks,red connection to blue)4.Yellow & black : brake5.Red & Yellow: Brake light6.Red&Black(small cable) : indicator light7.Red, Black & Blue: Speed Regulator 1-4 V(Throttle )(Red:+5v,Black: - ,Blue :Signal Wire)8.Red & Black (small cable): ChargerThrottle: Universal 12v 24v 36v 48v Black Electric Scooter Bike Throttle GripBeautiful outlook and modern design.Throttle Control Set Three PinSuit for Electric Throttle,Motorcycle,Scooter.Specification:Style: striae & RoundOperating voltage: 5VAdjustment range: Minimum 1.0V; highest 4.0VFunction: high, medium and low grades governorPackage includes : 1x controller + a set of x throttle+ 1x Motor
Product Features
[WIDE APPLICATION] This 36V DC brush motor is not only suitable for bicycles, but also for mini four-wheel motorcycles, electric scooters, electric motorcycles, motorcycles, small electric motorcycles and karts. With this motor, you can take a quick bike tour!
[PREMIUM MATERIAL] This 36V DC brush motor has an aluminum body, all-copper coil, and can reach an ultra-fast speed of 2800RPM, thus ensuring high work efficiency. And this motor has the characteristics of heat resistance, low noise, high quality and long service life. This motor has a compact body, lightweight structure, easy to carry and operate.

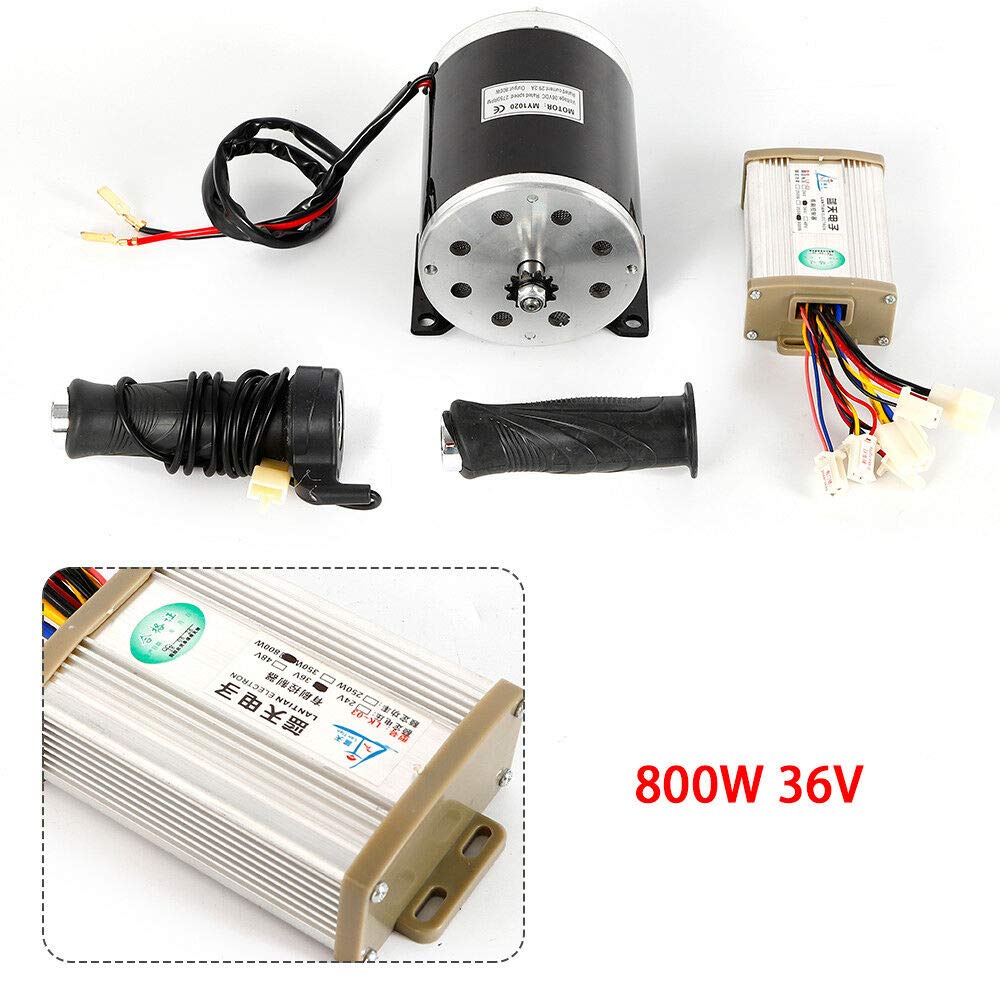

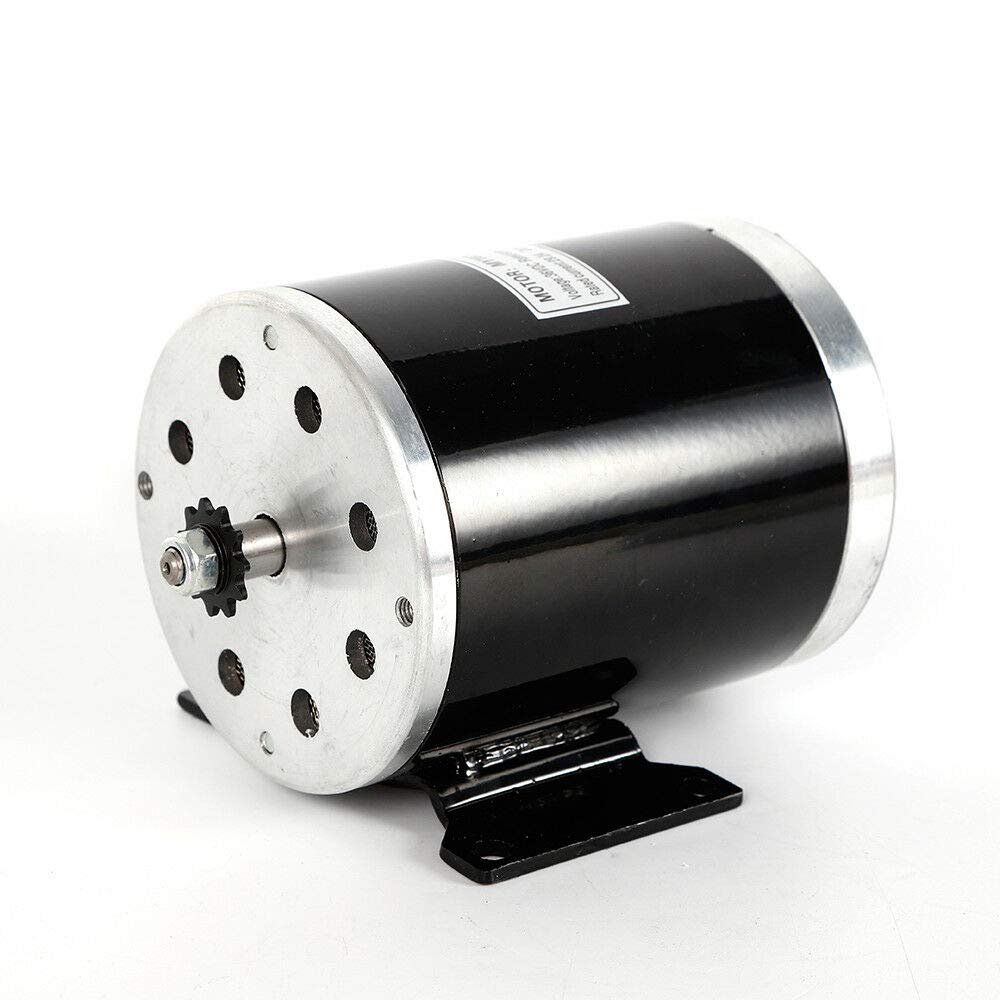

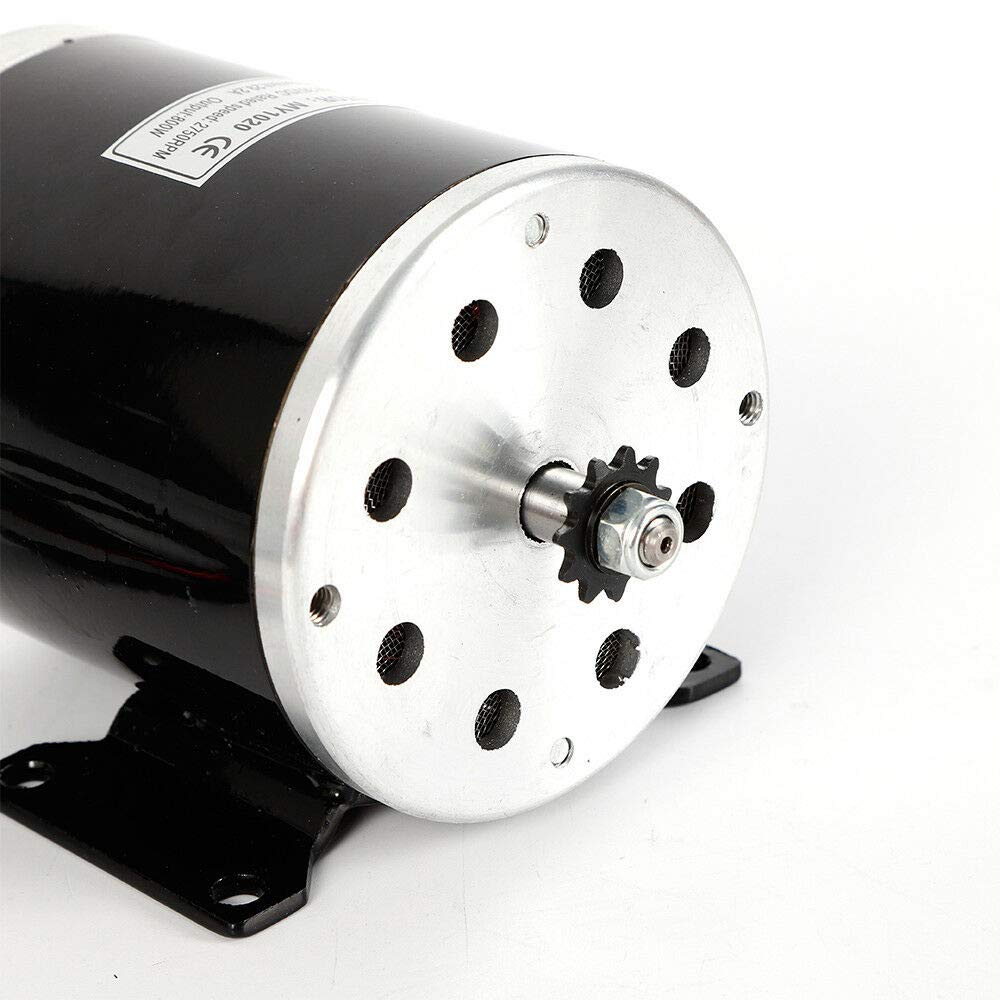

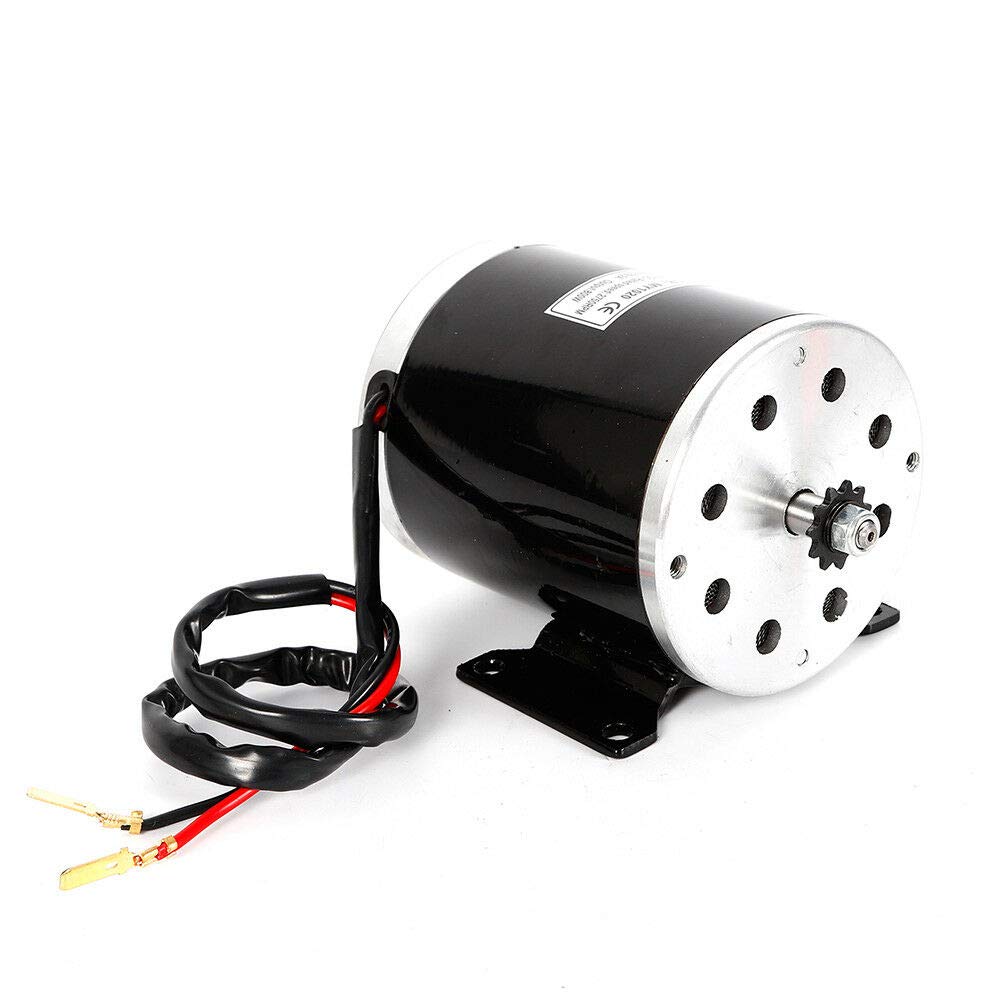

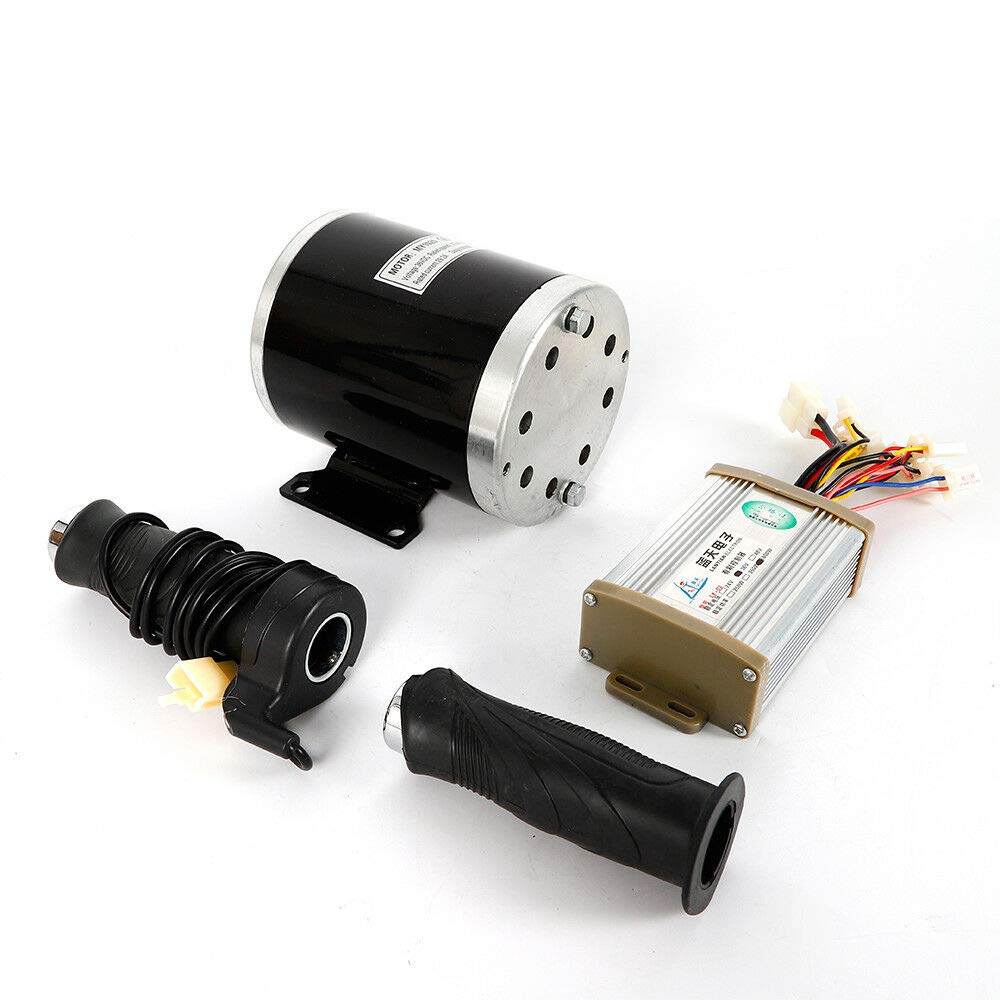

[MOTOR SPECIFICATIONS] Motor sprocket 11 teeth. Diameter 10.5cm. Bracket foot width12cm. Motor length 13.5cm. FitT8F/25H Chain. Rating power 800W 36V. Rating speed rate/rpm 2800rpm. Rating torque /N.m 2.8 N.m. Efficiency ≥78.Use tricycle , bicycle , E-scooter, EVO scooter ,Extreme scooter. Package includes 1x controller + a set of x throttle+ 1x Motor.
[MULTIFUNCTIONAL SPEED CONTROLLER] The speed controller has connections for the following purposes battery, engine, charger, lock/on/off switch, brake (will turn off the motor), battery power indicator, tail light, throttle (no reverse sensor). So you only need to install this speed controller to have these functions.
[QUALITY ASSURANCE] Our products are shipped directly from the US warehouse. We have strict quality control system, our products are put into the market after rigorous testing. We provide friendly customer services forever. If you have any questions or quality issue,please feel free to contact us.
